Ampco ZP1+ Series Positive Displacement Pumps

Continuing to bring innovation to the sanitary pump market, Ampco Pumps has enhanced the traditional design of the popular ZP1 pump with the patent pending ZP1+ positive displacement pump. This advanced design changes the position of the dynamic O-ring for better performance and faster maintenance.

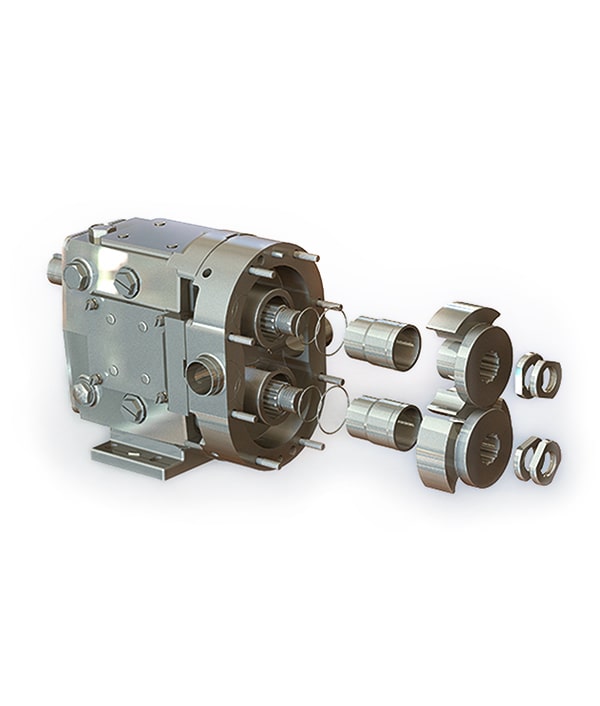

The ZP1+ dynamic O-rings can be changed without removing the body or disconnecting the pump from the piping system, providing simple maintenance and increased production times. The one piece sleeve design seals the pump if the rotors are removed for CIP processing.

ZP1 vs ZP1+ new pump pricing is the same. Keep in mind fluid end adjustments are required to convert a ZP1 to ZP1+ but once completed the pumps can be freely converted in the field. All other parts are interchangeable between the two series. Existing ZP1 pumps can be converted to the ZP1+ design during the remanufacturing process at no additional charge.

ZP1+ Series
Circumferential Piston Pump Features

  • 304 Stainless Steel Gearcase
  • Alloy 88 Non Galling Rotors
  • Stainless Steel Bearing Retainers
  • 17-4ph Shafts – more than 3 times the yield strength of 316
  • Helical Gears
  • 4-Way Mounting
  • Multiple Threaded Grease Zerks
  • Gasketed Stainless Steel Clean-out Plugs
  • Stainless Steel Splash Plate

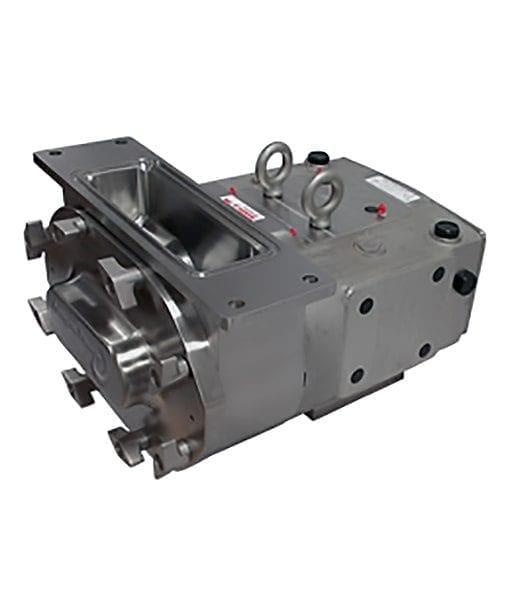

Available Options – Rectangular inlets (Size 30 and larger) pressure relief valves, heating jackets, and optional rotor designs

ZP1+ Series Performance Overview

Models:  5
Max. Discharge Pressure:  225 PSI / 15.5 BAR
Max Flow Rate:  452 GPM / 103 m3/hr
Max Viscosity:  1,000,000 cP
Seal Specifications:  2 Seal Options
